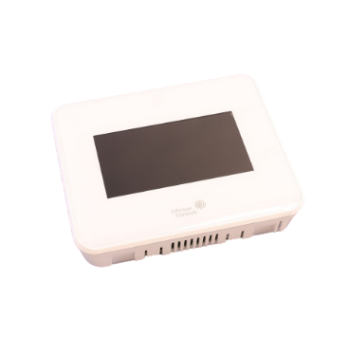

Johnson Controls TEC3631-14-000 Thermostat Controller MSTP/N2 RTU Heat Pump White

Johnson Controls  TEC3631-14-000 Thermostat Controller MSTP/N2 RTU Heat Pump White
Images for general purposes only. Actual may be different than depicted.
Johnson Controls  TEC3631-14-000 Thermostat Controller MSTP/N2 RTU Heat Pump White

Johnson Controls TEC3631-14-000 Thermostat Controller MSTP/N2 RTU Heat Pump White

SKU: TEC3631-14-000
Rating:
Quantity Price Stock
5
Usually ships in 2 weeks
$590.94     /ea
5
0
$0.00
0
$0.00
0
TEC3631-14-000
Johnson Controls TEC3631-14-000 Thermostat Controller MSTP/N2 RTU Heat Pump with Economizer comes in a white color.

The TEC3000 Series are wireless thermostat controllers that can be programmed into BACnet MS/TP or N2 networked that can provide on/off, floating and proportional control.
You can remote monitor and program the wireless and field-selectable BACnet MS/TP or N2 networked thermostat controllers through the building automation system, for efficient space temperature control. The wireless thermostat controllers feature a connection to the ZFR Pro wireless network. All models include a USB port configuration that reduces installation time by allowing simple backup and restore features from a USB drive, which enables rapid cloning of configuration between like units. The programming memory of all TEC3000 Series Thermostat Controllers is non-volatile. Some models feature a built-in occupancy sensing capability. These thermostat controllers use additional standby setpoints to maximize up to 30% energy savings in high-energy usage commercial buildings, such as schools and hotels, during occupied times.




Power Requirements 19 to 30 VAC, 50/60 Hz, 4 VA at 24 VAC nominal, Class 2 or safety extra-low voltage (SELV
USB Port Power Rating 120 to 250 mA current draw supported
Analog output rating (for TEC3x2x models) 0 to 10 VDC into 2k ohm resistance (minimum)
Fan relay output rating (for TEC3x1x and TEC3x2x models) 19 to 30 VAC, 1.0 A maximum, 15 mA minimum, 3.0 A in-rush
