Suntec A1RA Series Oil Pump

The Suntec A1RA7738 is one of the most popular oil pumps in the industry.
The A1RA-7738 oil pump draws the fuel from the tank to through the built-in strainer and transfers it to the valve that regulates the fuel pressure to the nozzle line. All the fuel which does not go through the nozzle line will be by-passed through the seal chamber and then back to the inlet.

Features:

• Fuels : Suitable for Kerosene, No. 1 or No. 2 Fuel Oil
• RPM : 1725
• Rotation : R. H.
• Nozzle Port Location : R. H.
• Strainer & Nozzle Rating at 100 psi : 2.5 gph
• Special Features : Waste oil application

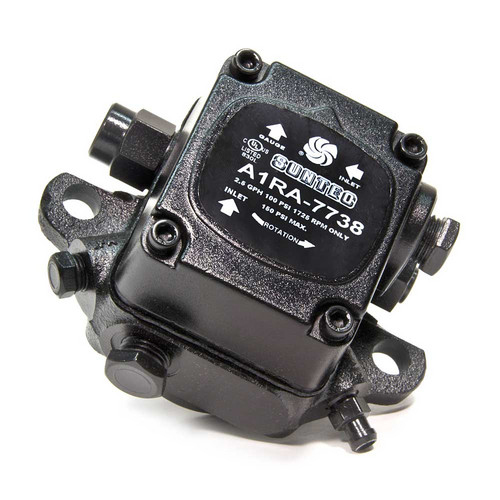

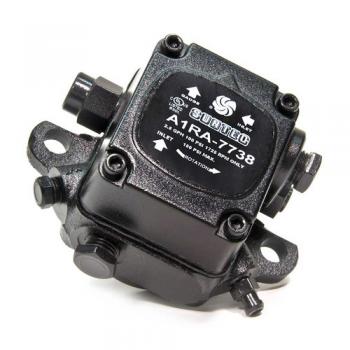

• Image shown is not this exact model
• Bleed : The easy flow bleeder valve must be loosened to bleed the system.
• Installation : This unit is supplied for 1-pipe operation only
